What do you call a super portable MIDI interface which also is a standalone interconnecting USB host, can drive gate signals, has per-port MIDI Filtering /Clock Processing and is about the size of an Altoids tin?? Some call it a ‘gamechanger’… we call it the RK-006!
The RK-006 is about 7x5x1cm in size (3x2x0.4″) and packs 2 MIDI Inputs and 10 MIDI outputs. Outputs can change their function to MIDI/Gate or PWM, offerering formidable connecting possibilities from any MIDI device!
So let’s elaborate on the RK-006 specifics and it’s special features which differentiate it from the rest:
DAW/DAWLESS
You can use the RK-006 completely standalone with the same ease of using a 2-in, 10-out thru hub (with usb-standalone hosting and port filtering benefits), or you can use it as a 2-in, 10-out USB MIDI interface on your favourite platform/DAW (PC / MAC / Linux / Android / iOS (on iOS you need the apple usb connection cable) Just use one of the ten presets or configure and store your own custom configurations in the RK-006 via our webMIDI-settings-interface.
MIDI MODE
Every output port on the RK-006 can be individually set to send out full MIDI or Gate pulses, making a lovely hybrid use of it’s 3.5mm TRS connectors: You can connect DIN5 MIDI Gear via the included TRS-A to DIN5 cables or just plug in a plain ‘stereo minijack audio cable’ (preferably shielded) to sync up modular gear or even ‘minijack-MIDI’ devices like the Korg Electribe or NTS-1 and such.
In MIDI mode you can apply MIDI Channel/Clock filtering and even clock modifiers (‘Multiclock’, allowing creative use of an abundance of sequencer gear which are available nowadays. Of course these ports can also power our RK-002 Smart MIDI processing cable as well.
GATE MODE
When you set a port to Gate mode the MIDI-Tempo-to-Gate multiclock is still available. This together with an assignable Run/Stop signal allows synchronisation of devices like older Sync24/DINSync units as the TR-808, TR-303 and TR-606 (just to name a few) but also newer ones like the Moog DFAM and Teenage Pocket Operators and anything inbetween; Directly from your MIDI device.
Gate signals can be triggered via a MIDI clock signal but also via MIDI Notes, adding the ability to bridge MIDI controller pads and modular gear.
MASTER CLOCK GENERATOR
The one-button on the RK-006 can be used to tap in a master clock or change presets on the RK-006 routing. You can also use it to switch from seemingly a MIDI merger/thru box to e.g. an independent dual-brain setup or one-big-master-gate-clocks-generator.
USB STANDALONE HOST
By using a simple (and included) OTG Adapter cable you can even connect plain 5V power and a USB hub to the RK-006 and host multiple USB-MIDI devices. The RK-006 will interconnect them and merge them together with the existing hardware ports. And because one USB-cable can route a whole lot more than just a MIDI-In or MIDI-Out we added extra filtering to specifically target these USB devices as well.
And while in the USB area: You can even plug in a USB Memory Stick with prepared MIDI files (also called ‘SMF’). You can export these files on a DAW like Bitwig, Fruityloops, Ableton or Reason and playback these prepared tracks on your DAWless system, ready to play or clock-slave on your standalone sequencer of choice and play along live with it.
This might already be too much info, but the story does not finish there quite yet:
USB MIDI INTERFACE
All the above can take place in the DAWless area BUT….You can also connect the RK-006 to e.g. a Desktop computer or iPad (note that iOS do need Apple’s USB2Lightning cable) and enjoy all the RK-006 ports independently addressable on your DAW! This means:
* 10 separate MIDI outputs, every one of them can accommodate 16 MIDI devices
* 2 separate MIDI Inputs
Also, for usability’s sake we added:
* Aggregate merged MIDI Out port to ALL 10 ports
* Aggregate auto MIDI Merged Input
You can find the accompanying manual here elaborating on the features. If you’re in an advanced mode – check out the RK-006 settings page (useable with webMIDI on chrome / edge browser) or download the iOS app. The MIDI SysEx implementation is available too, it’s hjuuudjz!.

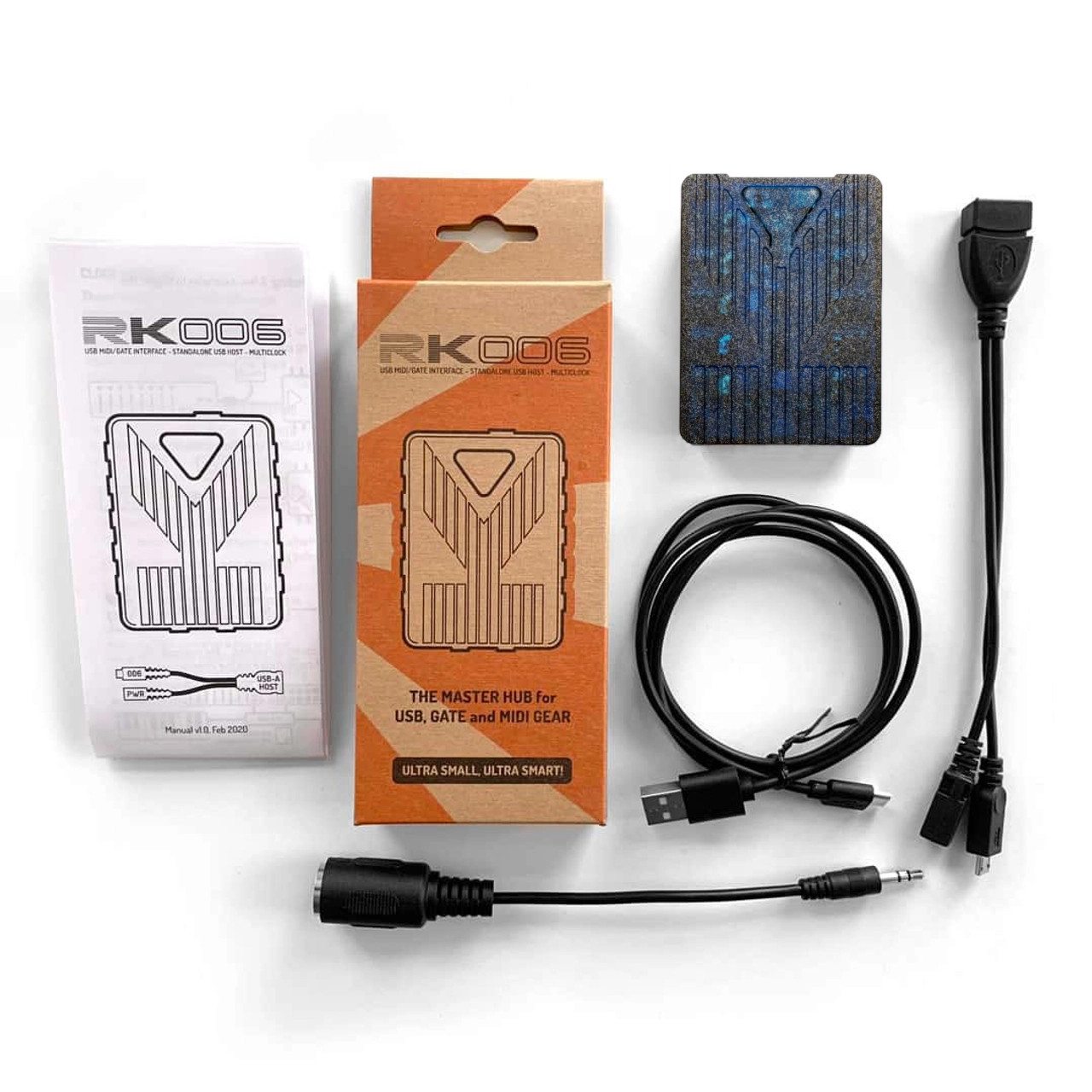

Includes the following accessories:
1x RK006 Master Hub
1x Micro USB Cable
1x USB Client to USB-Host dongle (‘OTG cable’)
1x TRS-A to Female DIN5 Dongle
The Cable Bundle includes the following extras:
1x TRS-AxB Dongle
4x 1.5m Shielded TRS-A to male DIN5 cables
For more info on MIDI Type A/B please check out - https://minimidi.world/
Includes the following accessories:
1x RK006 Master Hub
1x Micro USB Cable
1x USB Client to USB-Host dongle (‘OTG cable’)
1x TRS-A to Female DIN5 Dongle
The Cable Bundle includes the following extras:
1x TRS
