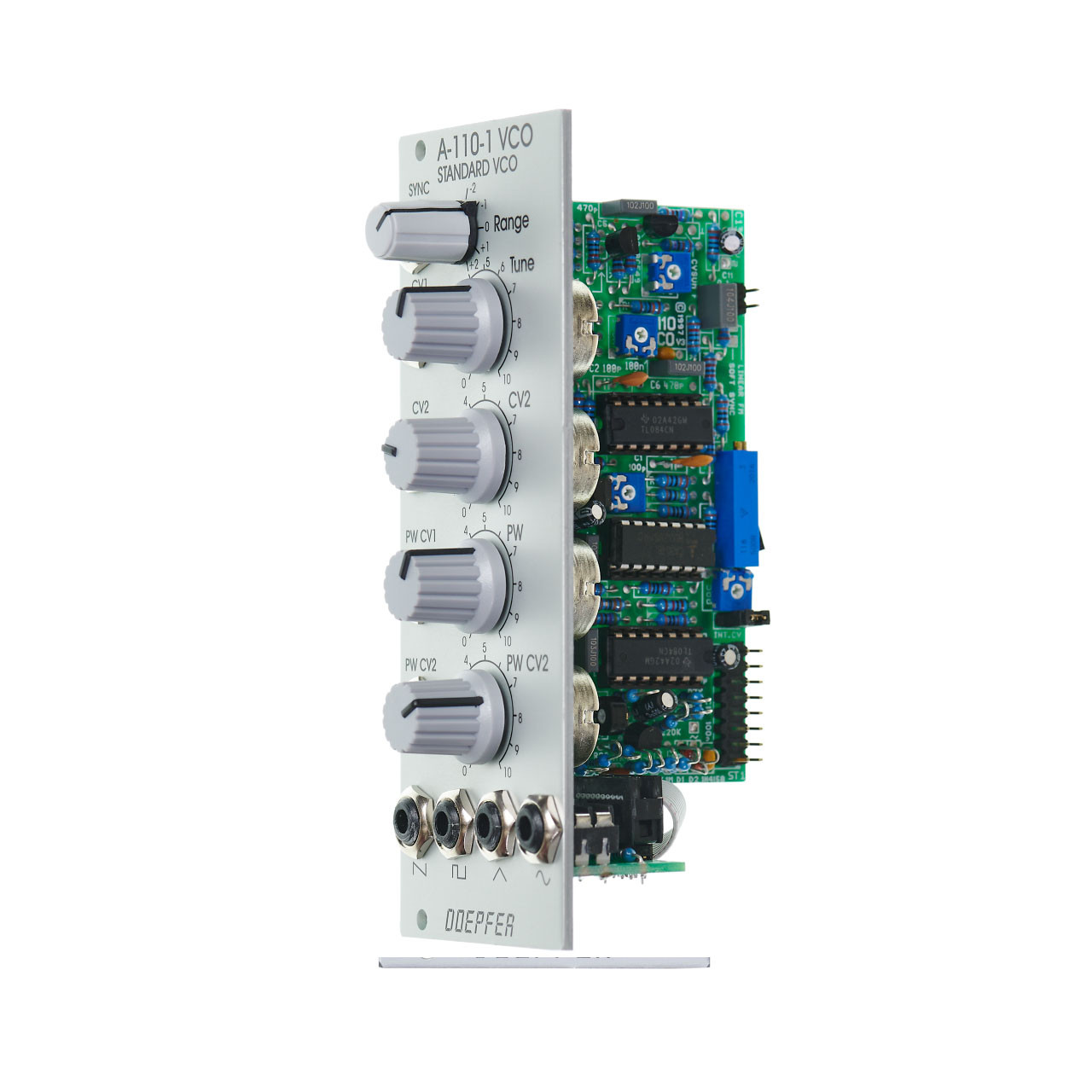

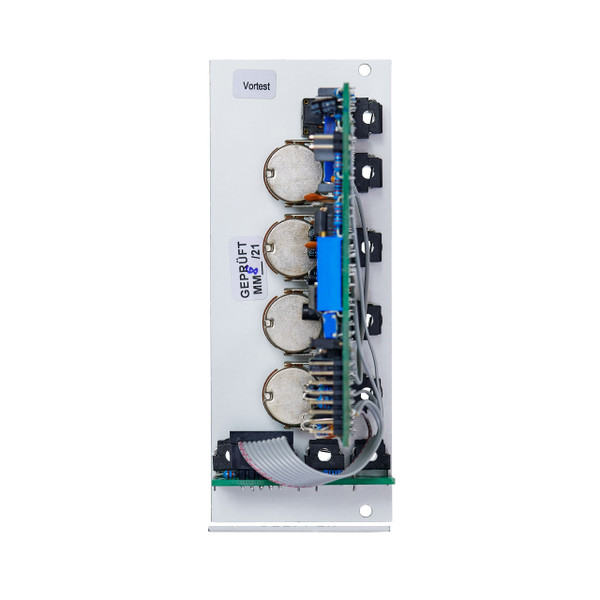

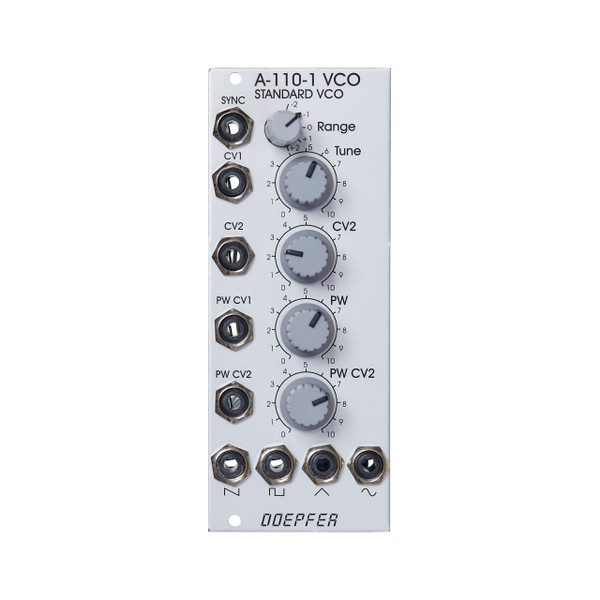

Module A-110-1 is a voltage-controlled oscillator. This VCO's frequency range is about eight octaves (ca. 15Hz ... 8kHz). It can produce four waveforms simultaneously: rectangle, sawtooth, triangle, and sine wave (triangle and sine shapes are not perfect, see remark below). The output levels are typically 8Vpp for saw and rectangle, and 10Vpp for triangle and sine. The frequency or pitch of the VCO is determined by the position of the octave (Range) switch and tuning (Tune) knob, and by the voltage present at the CV inputs. Frequency modulation (FM) of the VCO is therefore a possibility. Footage (the octave of the fundamental) is set by the Range control in five steps, and Fine tuning controlled by the Tune knob. The tune knob range is about +/-1 semitone for older modules. Since about middle of 2015 the value has been increased to about+/- 1/2 octave. In the A-110 service manual is described how to modify the range.
You can control the pulse width of the square wave either by hand, or by voltage control - Pulse Width Modulation or PWM.
- Width: 10TE / 10HP / 50.5 mm
- Depth: 55 mm (measured from the rear side of the front panel)
- Current: +90mA (+12V) / -20mA (-12V)
How much is my shipping?
Shipping is automatically calculated before you submit your payment information. Simply add items to your cart and proceed to the checkout page, where you'll be offered shipping options and their prices. In the UK it's normally around £4 for order values under £150, and free above that. Shipping to mainland EU is typically between £7 and £20, depending on the shipping method and the size and weight of the order.
Do you ship to my country?
Almost certainly - the site will give you an estimate of shipping costs if you add an item to the cart and then enter your country and postcode. If you have specific requirements (such as if you prefer UPS over FedEx, for example) then let us know in advance and we'll try to work something out for you.
Shipping methods
We use a combination of Parcelforce, DPD, Royal Mail and UPS for the UK, and for international orders it's either Royal Mail, UPS, DHL or FedEx depending on where you are in the world. If you have a particular preference then try to let us know BEFORE you order so we can look into it for you. Please note that there may occasionally be additional shipping charges if you live in a remote area, depending on what surcharges are applied by the shipper. We'll get in touch to discuss this with you in such cases.
Dispatch times
For UK orders, we normally dispatch the same working day if we get the order before 15:00. If you have a really urgent situation then of course drop us an email before ordering and we'll always do our absolute best to accommodate you.
For international orders, we normally dispatch the same day if we get the order before 13:00 but again, occasionally it might be the next day before we can send it out, and sometimes FedEx or UPS may come a little earlier than scheduled which would also push an order into the next day.
Shipping times
Since April 2020 the couriers we use have suspended guarantees for shipping times, so even though we're paying them for priority services - 24-48 hours for most of the world - in practice it's often an extra day on top and sometimes it can be longer.
There is absolutely nothing we can do about this unfortunately. If you are outside the UK and it's a life-or-death situation where you absolutely MUST have that passive mult for the next day then... it may be better to find a local supplier.
Saturday shipping
If you're in the UK and you order before 15:30 on a Friday then we can send something for a Saturday delivery (NB: this applies to UK mainland addresses only). The success rate with DPD is about 95% so it's worth a punt most of the time. Please note that if you select Saturday shipping on an order placed earlier in the week, we'll wait until Friday to ship it.
Pre-orders
If a product is listed as a pre-order, it means we've ordered it from the supplier but it's not physically in stock yet. The product listing will include an estimated shipping date based on the best information we have from the supplier, but do bear in mind this is subject to change and is not a guaranteed date.
If you place an order containing a mixture of in-stock and pre-order items, we'll normally hold off on shipping anything until the pre-order item(s) have arrived, rather than splitting it into multiple shipments. If you need the in-stock items sooner, we'd recommend placing separate orders. As always, please get in touch if you have questions.
Product Overview
Module A-110-1 is a voltage-controlled oscillator. This VCO's frequency range is about eight octaves (ca. 15Hz ... 8kHz). It can produce four waveforms simultaneously: rectangle, sawtooth, triangle, and sine wave (triangle and sine shapes are not perfect, see remark below). The output levels are typically 8Vpp for saw and rectangle, and 10Vpp for triangle and sine. The frequency or pitch of the VCO is determined by the position of the octave (Range) switch and tuning (Tune) knob, and by the voltage present at the CV inputs. Frequency modulation (FM) of the VCO is therefore a possibility. Footage (the octave of the fundamental) is set by the Range control in five steps, and Fine tuning controlled by the Tune knob. The tune knob range is about +/-1 semitone for older modules. Since about middle of 2015 the value has been increased to about+/- 1/2 octave. In the A-110 service manual is described how to modify the range.
You can control the pulse width of the square wave either by hand, or by voltage control - Pulse Width Modulation or PWM.
- Width: 10TE / 10HP / 50.5 mm
- Depth: 55 mm (measured from the rear side of the front panel)
- Current: +90mA (+12V) / -20mA (-12V)
